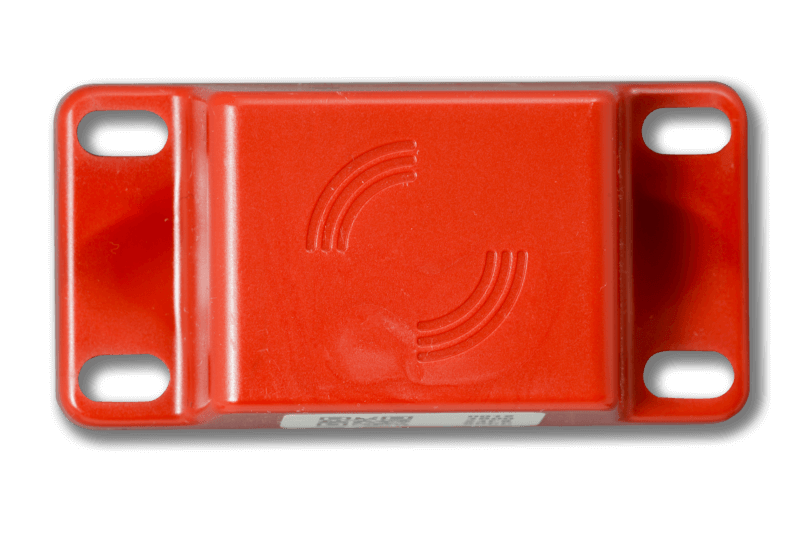

The Beacon R is the most robust version of our indoor positioning beacons for use in particularly demanding situations. The housing is made of 5 mm fiber-enforced plastic and the electronics are waterproof and shockproof encapsulated. This makes the sender almost indestructible. The integrated battery lasts approx. 5 years with a signal interval of 20 seconds.
The Beacon R can be used in the following applications, among others
- Localization of vehicles at the depot
- Location of products and Work in Progress
- Presence detection of rental objects
Specifications
| Operating Principle | Indoor Positioning Beacon |
| Operating Frequency | 2.45 GHz ISM band |
| Output Power | max. 4 dBm |
| Supported Protocols | IEEE 802.15.4 |
| Channels | Channels 11 – 26 supported |
| Operating Voltage | 2477 Coin Cell Battery |
| Signal Interval | 1-600 sec (configurable) |
| Weight | 57 g |
| Temperature Range | -20° to +60°C |
| Dimensions | 80 x 40 x 20 mm |
| Certifications | CE (eg. EN 300 328, EN 300 440) |
Documents and software
| Download | Version | Size |
|---|---|---|
| Product Brief PDF | N/A | N/A |
