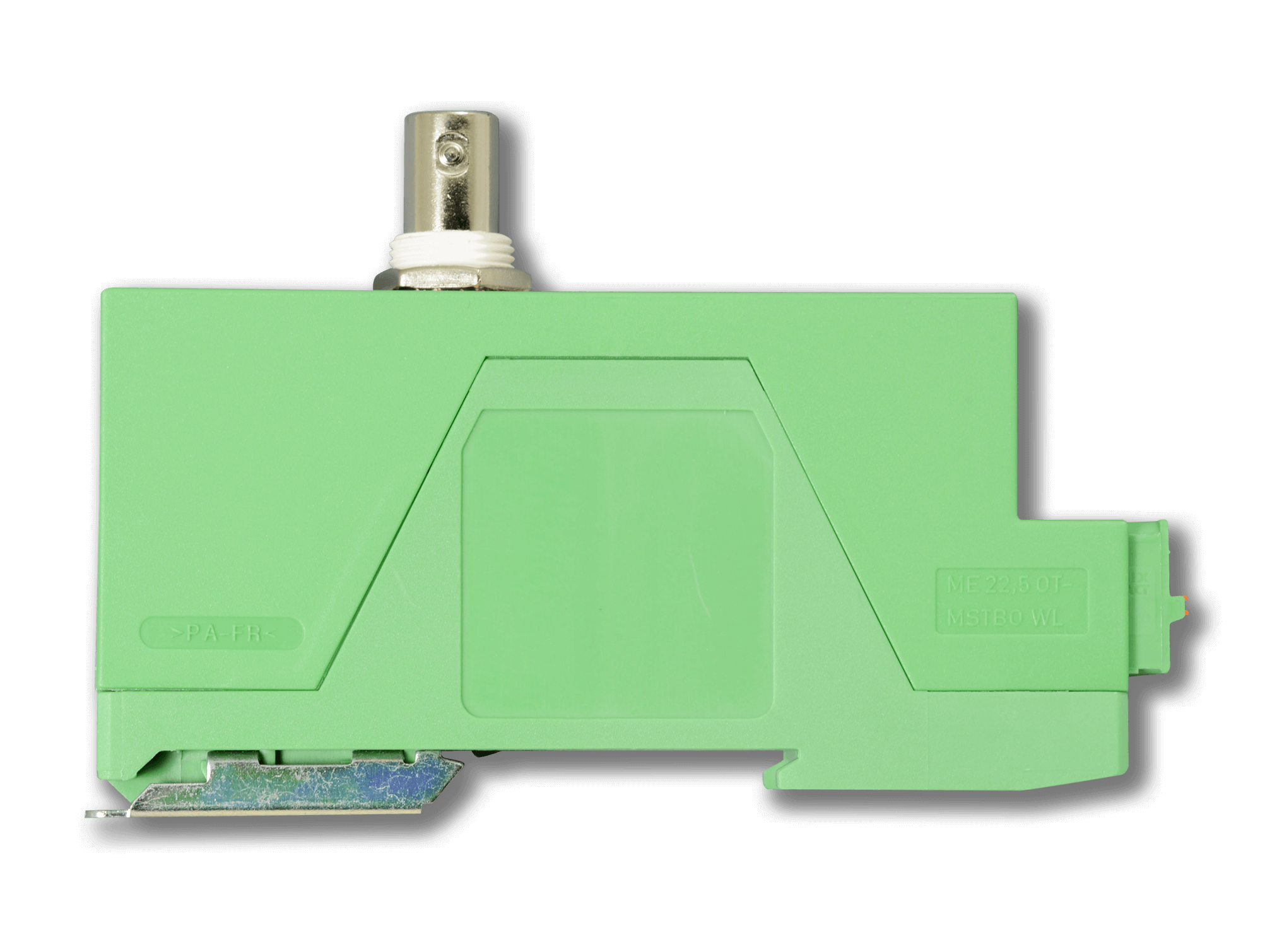

Managing user access to industrial machines is more and more done by RFID. In these settings, using an RFID reader in a DIN Rail housing can have many advantages during installation. These applications also require industrial communication standards. Both problems are solved by the CC-Lock RFID reader.
With Ethernet and RS485 communication this RFID reader can be connected to any PLC or industrial PC, depending on the situation. It reads NXP Mifare® Classic and Mifare Ultralight® transponders that are usually used in access and authentication systems due to their high security.
Specifications
| Operating Principle | DIN-Rail industrial RFID Mifare Reader/Writer |
| Operating Frequency | 13.56 MHz |
| Supported Protocols | Mifare Classic, Mifare Ultralight, NTAG |
| Operating Voltage | 24V DC |
| Antenna Connector | BNC |
| Connectivity | Ethernet, RS485 |
Documents and software
| Download | Version | Size |
|---|---|---|
| Product Brief PDF | N/A | N/A |
| Metratec Mifare Protocol Guide | 2.3 | 483.75 KB |
