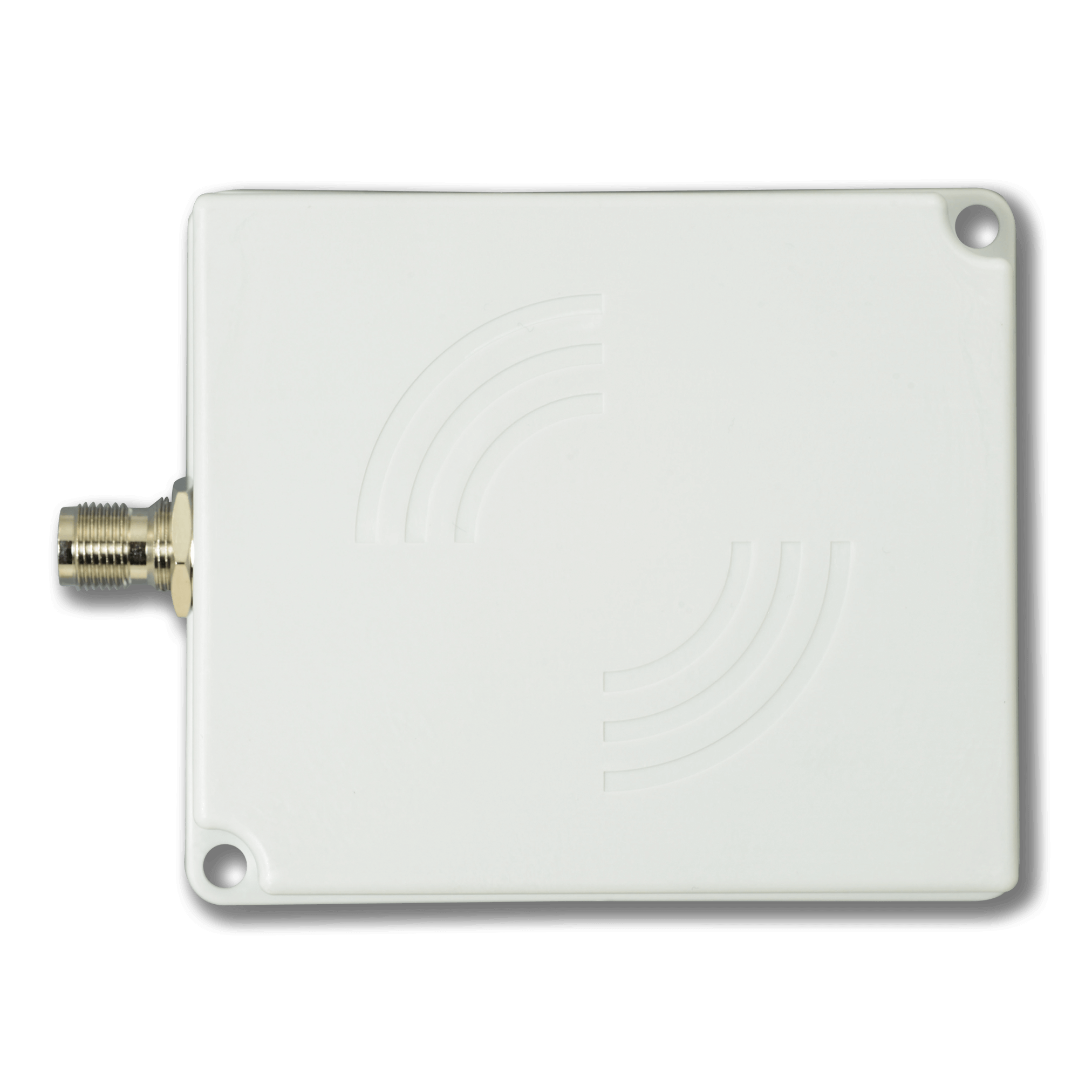

Echo5-NEcho-5P and Echo-N top view

Echo-N UHF RFID Nearfield Antenna

  • Locally limited UHF field
  • Inductive Coupling
  • Compact IP65 Housing

Article No.

The Echo-N is a true UHF RFID nearfield antenna for the European frequency range of 868 MHz. The antenna has no real far-field which minimizes false reads due to unplanned reflections. Even when operating several systems near each other disturbances are minimal.

The compact housing dimensions are 102 x 85 x 25 mm (plus the antenna connector at the bottom). This connector is a robust R-TNC connector. The housing is IP65 (water and dustproof).

In the back, the housing is closed by a solid aluminum plane which shields the antenna against unwanted influences from the surrounding environment. The plane has riveted threads that can be used to mount the antenna with the matching mount.


Operating PrincipleUHF RFID Nearfield Antenna
Operating Frequency868 MHz (UHF RFID, Europe)
Bandwidth861 – 870 MHz
Polarizationnone (only near-field)
Antenna Gainapprox. -20 dB
3 dB Angular Widthn.a.
Impedance50 Ohm
Antenna ConnectorR-TNC
Ingress ProtectionIP65
Dimensions90 x 105 x 30 mm (without connector)
