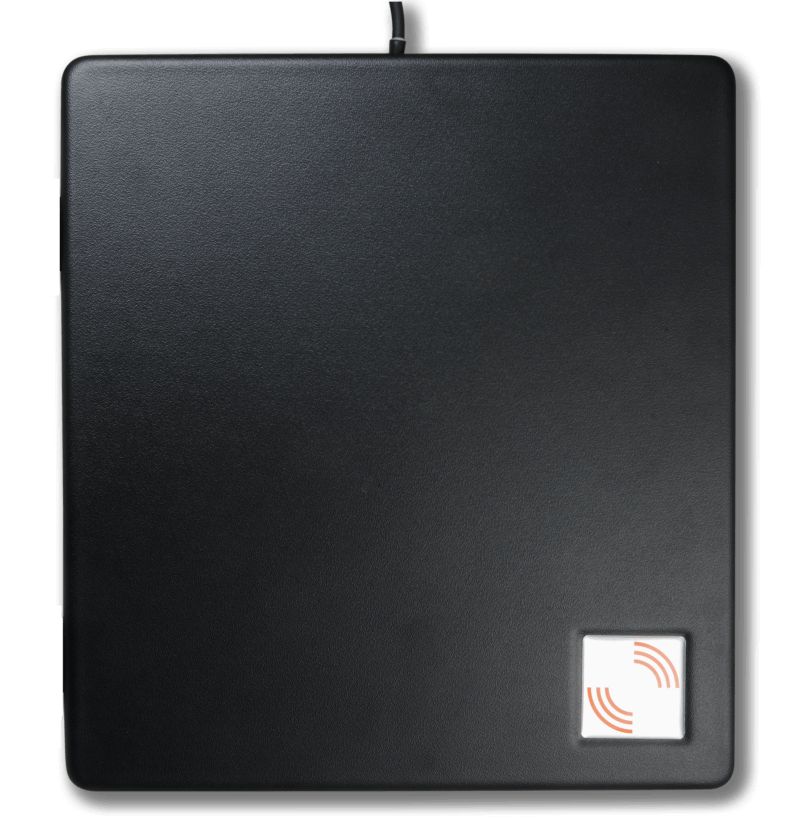

DoubleLoopDoubleLoop top view

DoubleLoop HF RFID Antenna

  • Slim Desktop Antenna
  • Optimized for different tags

Article No.

The Metratec DoubleLoop Antenna is a housed HF RFID antenna for scanning stacks of books and other media. Thanks to the two internal antenna loops, the product can effectively power large transponders (as typically used in books) as well as small transponders as used in DVDs and other objects. This makes it the perfect antenna to use in libraries where HF RFID is in use.

With its slim design, it fits on any desktop or counter. The integrated coaxial cable has a length of 100 cm and an SMA connector at the end. A BNC adapter is included so you can connect the antenna to any 13.56 MHz RFID reader you might have.


Operating PrincipleHF Dual Loop RFID Antenna
Operating Frequency13.56 MHz (worldwide)
Read RangeUp to 30 cm
Antenna ConnectorSMA / BNC (with included adapter)
Ingress ProtectionIP42
Temperature Range-20°C to +75°C
Dimensions25 x 25 x 3 cm / 9.8 x 9.8 x 1.5 inch

Documents and software

Product Brief PDF N/AN/A
